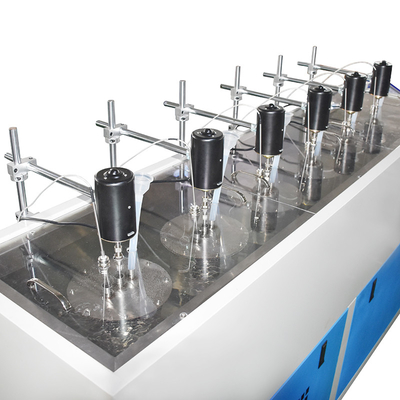

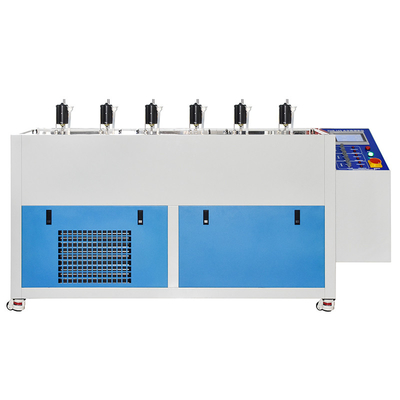

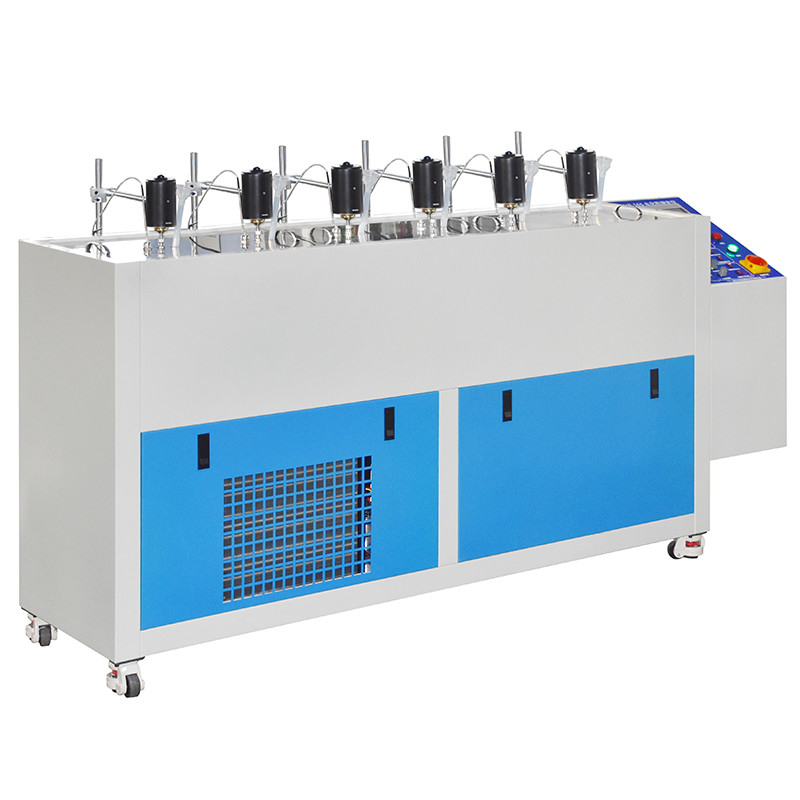

Liquid Crystal Display Cement Hydration Heat Tester AC220V / 50Hz

Liquid Crystal Display Cement Hydration Heat Tester AC220V/50Hz

Function summary:

Cement heat of hydration tester is designed according to the relevant provisions of GB/T12959-2008 "Method for determination of heat of hydration of cement". Suitable for the determination of heat of hydration of medium heat Portland cement, low heat Portland cement, ordinary Portland cement, Portland slag cement, Portland volcanic ash cement, Portland fly ash cement, etc.

Method principle:

The determination of the heat of hydration is based on the Geiss law of thermochemistry, that is, the thermal effect of a chemical reaction is only related to the initial and final state of the system and has nothing to do with the way of reaction. It is proposed that under the condition of a certain temperature around the calorimeter, unhydrated cement and hydrated cement of a certain age are dissolved in a certain concentration of standard acid, and the difference of the heat of solution is measured. Is the heat of hydration released by the cement during the specified age. The heat of cement hydration tester is mainly used to determine the heat of cement hydration at any age by the difference between the heat of solution in a certain concentration of standard acid before and after cement hydration.

Implementation standard:

GB/T12959-2008 "Cement hydration heat determination method"

GB/ T15560-1995 "Hydraulic transient blasting and pressure resistance test method for plastic pipe for fluid transportation"

Technical parameter:

1. Vacuum bottle volume: 650ml

2. Inside diameter of vacuum bottle: 75mm

3. Vacuum bottle depth: 160mm

4. Difference range of calorimeter: 5 ~ 6℃

5. Grading value: 0.01℃

6 sink temperature: 20℃±0.1℃

7. Power supply, power: AC220V/50Hz 2500W

8. Net weight: 100kg

9. Dimensions: 720×600×1120mm
